Examples of plotting parametric function solution in Custom Design Component

Previous pageReturn to chapter overviewNext page


for example we take the 2D parametric function



To plot the parametric function y(x), the user, input the command line: Plot:y(x),t,0,tf

Where: tf is the total time.

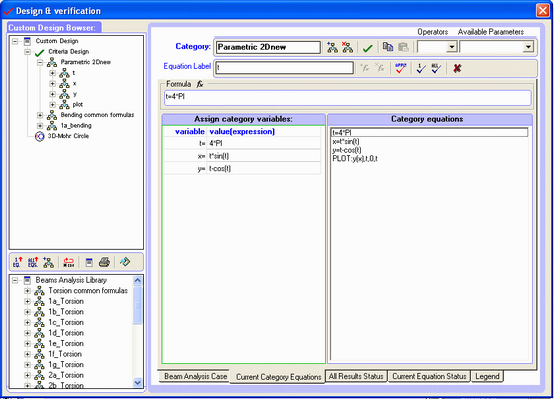

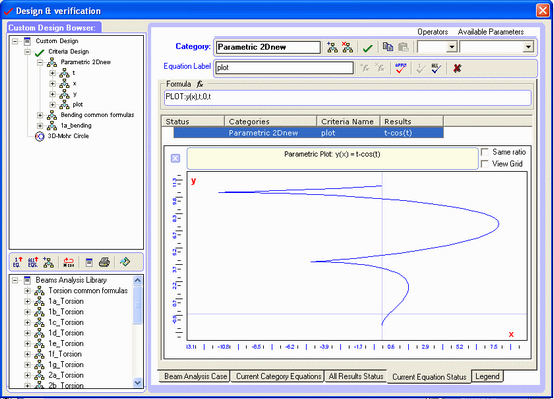

This mean to plot the parametric function y in function of the variable x where the local variable t varies from t=0 to t=tf . Example is given below in the custom design component
