Moment capacity of a composite beam (BS 5950)

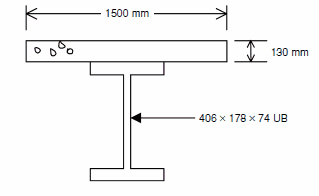

Determine the moment capacity of the section shown in Fig. 4.46 assuming the UB is of grade S275 steel and the

characteristic strength of the concrete is 35 N/mm2.


Reference:Arya, Chanakya. Design of structural elements : concrete, steelwork, masonry, and timber designs to British standards and Eurocodes– 3rd ed. published in the USA and Canada by Taylor & Francis 270 Madison Avenue, New York, NY 10016, USA  ISBN 0-203-92650-1

Filename: design-elements ex4.17-p209.SHD
