Computing for Composite Section Analysis

Previous pageReturn to chapter overviewNext page

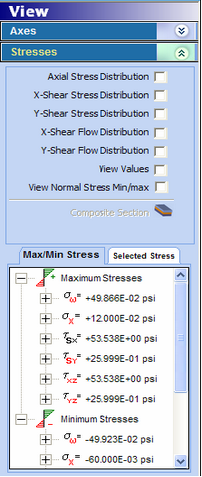

In Result mode, select the Stresses tab from the View toolbox, then by clicking on the Composite Section icon on the Stresses tab will trigger a new computation for the equivalent composite section.. Select the Reference Material. This time, the equivalent section is displayed in the Result view.
