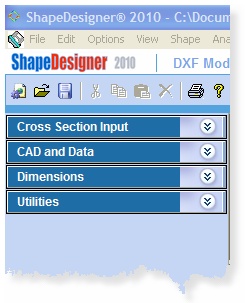

The toolbox is displayed by clicking Toolbox in the View menu. The toolbox may be moved from right to left of the application window by double clicking its title bar (above the Cross Section Input tab). The Toolbox contains icons that perform various operations. These icons are grouped by topics under tabs. For example, the Cross Section Input tab contains icons used to manipulate geometries. Some of the toolbox icons do not have corresponding menu items.



The Cross Section Input tab contains operations to create shapes and holes, and operations to add shapes to the drawing area



The CAD and Data tab is divided in three categories. The first category contains operations to modify existing shapes. The second category contains operations to change the bounding box. The last category is used display shape information windows.



The Dimensions and Label tab contains operations to visually document the section.
