Selecting the Reference Material

Previous pageReturn to chapter overviewNext page

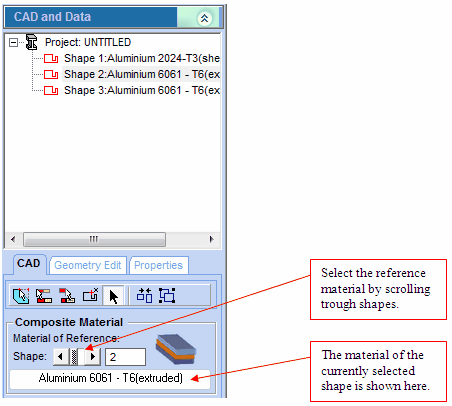

When more than one material is specified for a given section, the CAD tab of the CAD and Data tab is enhanced with a reference material selection. Use the horizontal scrollbar to go through the shape list. As a shape is selected, it is highlighted in the drawing area and its material is displayed in the white textbox.
