General Geometric Shapes

Previous pageReturn to chapter overviewNext page

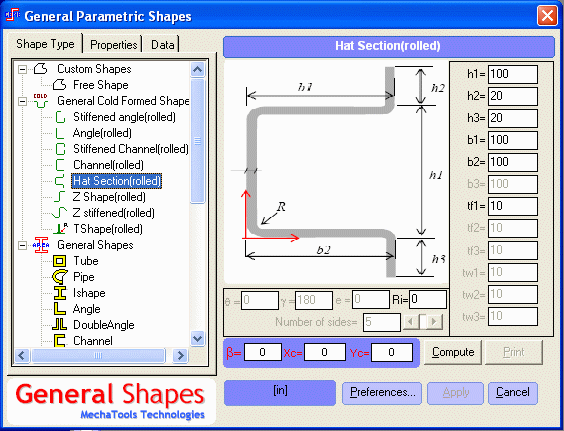

The General Geometric Shape component computes the geometric properties of predefined parametric shapes, cold formed shapes and custom free shapes. These properties are computed with respect to an arbitrary coordinate system. The shape drawing may be exported to Shape Designer or any other client applications.
